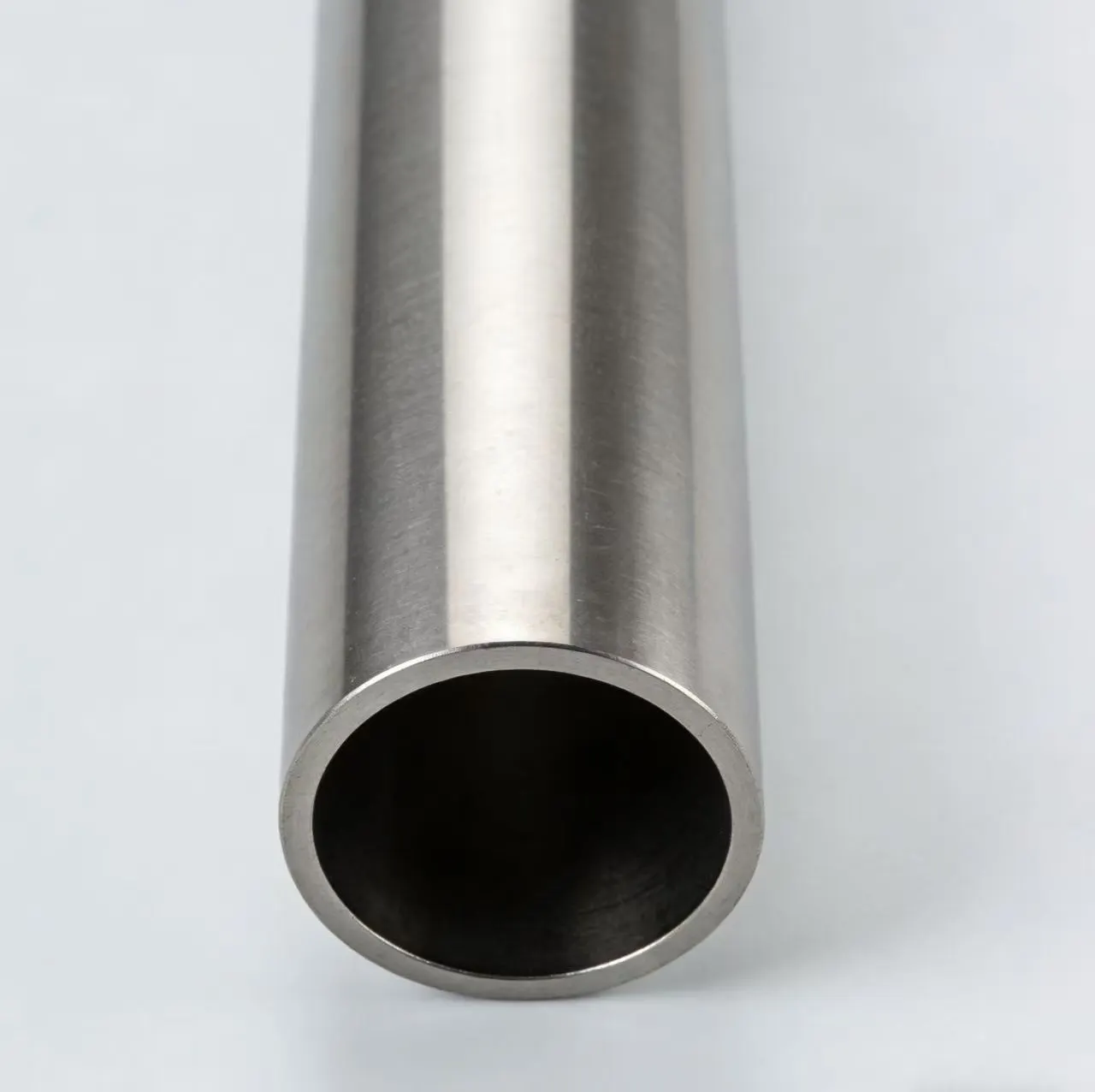

Seamless titanium tubes are essential components in various industries, prized for their exceptional strength-to-weight ratio, corrosion resistance, and durability. Understanding the manufacturing process of these titanium tubes is crucial for professionals in aerospace, medical, chemical, and other high-tech sectors. This article delves into the intricate steps involved in producing seamless titanium tubes, comparing different manufacturing methods, and exploring the importance of post-production treatments.

Step-by-step process: How are seamless titanium tubes made?

The production of seamless titanium tubes involves a series of complex steps, each contributing to the final product's quality and performance. Let's examine the primary stages in this sophisticated manufacturing process:

Raw material preparation

The journey begins with high-quality titanium ingots or billets. These raw materials undergo thorough inspection to ensure they meet the required specifications for purity and composition. The selection of the appropriate titanium grade is critical, as it determines the tube's final properties and suitability for specific applications.

Heating and piercing

The titanium billet is heated to temperatures ranging from 800°C to 1000°C, depending on the specific alloy composition. This heating process makes the metal more malleable and easier to work with. Once heated, the billet is pierced using a mandrel, creating a hollow center that forms the basis of the tube.

Extrusion or rolling

Following the piercing stage, the hollowed billet undergoes either extrusion or rolling to achieve the desired tube dimensions. In extrusion, the heated titanium is forced through a die, shaping it into a tubular form. Rolling, on the other hand, involves passing the material through a series of rollers that gradually reduce its diameter and wall thickness.

Sizing and straightening

After the initial forming process, the custom titanium tube undergoes sizing operations to achieve precise dimensions. This step may involve further rolling or drawing processes. Straightening techniques are then applied to ensure the tube meets stringent straightness requirements, which is crucial for many applications.

Heat treatment

Heat treatment is a vital step in the manufacturing process, as it helps optimize the titanium tube's mechanical properties. This process typically involves annealing, which relieves internal stresses and improves ductility. The specific heat treatment parameters depend on the desired final properties and the titanium alloy being used.

Surface finishing and quality control

The final stages of production focus on surface finishing and rigorous quality control. Surface treatments may include pickling to remove oxides, polishing for improved smoothness, or applying protective coatings. Quality control measures involve various nondestructive testing methods, such as ultrasonic inspection and eddy current testing, to ensure the tubes meet all required specifications.

Cold rolling vs. hot extrusion: Which method is better for titanium tubes?

When it comes to manufacturing seamless titanium tubes, two primary methods stand out: cold rolling and hot extrusion. Each technique has its advantages and limitations, making them suitable for different applications and production requirements.

Cold rolling process

Cold rolling involves the deformation of titanium at room temperature or slightly elevated temperatures, well below the material's recrystallization point. This process offers several advantages:

• Improved surface finish: Cold rolling typically results in a smoother surface, reducing the need for additional finishing operations.
• Tighter dimensional tolerances: The process allows for precise control over the tube's dimensions, making it ideal for applications requiring high accuracy.
• Enhanced mechanical properties: Cold working can increase the strength and hardness of the titanium, although it may reduce ductility.
• Lower energy consumption: As the process occurs at lower temperatures, it generally requires less energy compared to hot extrusion.

However, cold rolling also has some limitations:

• Limited size range: The process is generally more suitable for smaller diameter tubes and thinner wall thicknesses.
• Higher equipment stress: The forces required for cold rolling can be substantial, potentially leading to increased wear on tooling and equipment.
• Potential for work hardening: Excessive cold working can lead to work hardening, necessitating intermediate annealing steps.

Hot extrusion process

Hot extrusion involves shaping titanium at elevated temperatures, typically above its recrystallization point. This method offers its own set of advantages:

• Ability to produce larger sizes: Hot extrusion is well-suited for manufacturing tubes with larger diameters and thicker walls.
• Lower force requirements: The elevated temperatures make the titanium more malleable, reducing the forces needed for shaping.
• Improved ductility: Hot working generally results in better ductility compared to cold rolling.
• Capability to handle complex shapes: The process is more adaptable to producing tubes with non-circular cross-sections or variable wall thicknesses.

Limitations of hot extrusion include:

• Surface oxidation: The high temperatures can lead to surface oxidation, requiring additional post-processing steps.
• Lower dimensional precision: Hot extrusion typically results in less precise dimensional control compared to cold rolling.
• Higher energy consumption: The need to heat the material throughout the process increases energy requirements.

Choosing the right method

The choice between cold rolling and hot extrusion depends on various factors, including:

• Desired tube dimensions and tolerances
• Required mechanical properties
• Production volume
• Cost considerations
• Specific application requirements

In many cases, a combination of both methods may be employed to leverage the advantages of each process at different stages of production.

Annealing and finishing: Why are these steps crucial in production?

The final stages of seamless titanium tube manufacturing, particularly annealing and finishing, play a vital role in determining the quality and performance of the end product. These processes are essential for achieving the desired mechanical properties, surface characteristics, and overall reliability of the tubes.

The importance of annealing

Annealing is a heat treatment process that involves heating the titanium tubes to a specific temperature and then cooling them under controlled conditions. This step is crucial for several reasons:

• Stress relief: Annealing helps relieve internal stresses that may have developed during the forming processes, reducing the risk of distortion or cracking.
• Microstructure optimization: The process can be used to achieve the desired grain structure, which directly affects the tube's mechanical properties.
• Improved ductility: Annealing can enhance the ductility of the titanium, making it more formable for subsequent operations or end-use applications.
• Dimensional stability: By relieving stresses, annealing contributes to better dimensional stability of the final product.

The specific annealing parameters, including temperature, duration, and cooling rate, are carefully controlled to achieve the optimal balance of properties for the intended application of the titanium tube.

Finishing processes and their significance

After annealing, titanium tubes undergo various finishing processes to enhance their surface quality, corrosion resistance, and overall performance. Key finishing steps include:

• Pickling: This chemical process removes surface oxides and contaminants, preparing the tube for further treatments or use.
• Polishing: Mechanical or electrochemical polishing can improve surface smoothness, which is crucial for applications requiring low friction or high purity.
• Passivation: A controlled oxidation process that enhances the natural corrosion resistance of titanium by forming a protective oxide layer.
• Coating application: In some cases, specialized coatings may be applied to further improve corrosion resistance or provide specific surface properties.

These finishing processes are essential for:

• Ensuring cleanliness and preventing contamination in sensitive applications, such as in the medical or semiconductor industries.
• Enhancing corrosion resistance, which is particularly important for tubes used in aggressive chemical environments or marine applications.
• Improving surface characteristics for better flow dynamics in fluid handling systems.
• Meeting aesthetic requirements for visible components in consumer or architectural applications.

Quality control in annealing and finishing

Rigorous quality control measures are implemented throughout the annealing and finishing stages to ensure that the titanium tubes meet the required specifications. These measures may include:

• Microstructure analysis to verify proper annealing results
• Mechanical testing to confirm the achievement of desired strength and ductility
• Surface roughness measurements to ensure compliance with smoothness requirements
• Corrosion resistance testing to validate the effectiveness of passivation or coating processes
• Dimensional checks to verify that the tubes remain within specified tolerances after heat treatment

By carefully controlling and monitoring these final production stages, manufacturers can ensure that seamless titanium tubes meet the exacting standards required for critical applications across various industries.

​​​​​​​

Conclusion

The manufacture of seamless titanium tubes is a complex process that requires precision, expertise, and advanced technology at every stage. From the initial raw material preparation to the final annealing and finishing steps, each phase contributes to the exceptional properties that make titanium tubes so valuable across multiple industries. By understanding the nuances of cold rolling versus hot extrusion and the critical importance of post-production treatments, manufacturers can produce custom titanium tubes that meet the most demanding specifications.

As industries continue to push the boundaries of performance and efficiency, the role of high-quality titanium tubing becomes increasingly vital. Whether it's in aerospace applications demanding unparalleled strength-to-weight ratios, medical devices requiring biocompatibility and corrosion resistance, or chemical processing equipment facing extreme environments, seamless titanium tubes stand as a testament to the power of advanced materials and manufacturing processes.

For those in industries requiring high-performance materials, partnering with a reputable titanium tube manufacturer is crucial. If you're looking for top-quality seamless titanium tubes tailored to your specific needs, we invite you to reach out to our team of experts. With our state-of-the-art manufacturing capabilities and commitment to excellence, we can provide you with the perfect titanium tubing solution for your application. Contact us via online message to discuss your requirements and discover how our titanium products can elevate your projects to new heights of performance and reliability.
