Titanium forging is a sophisticated manufacturing technique that transforms raw titanium into high-performance components. This process harnesses the unique properties of titanium, including its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. In this comprehensive guide, we'll delve into the intricacies of titanium forging, exploring the step-by-step process, comparing hot and cold forging methods, and examining crucial temperature ranges.

Step-by-step titanium forging

The titanium forging process involves several critical stages, each contributing to the final product's quality and performance. Let's break down these steps to understand how raw titanium is transformed into precision-engineered components.

Material selection and preparation

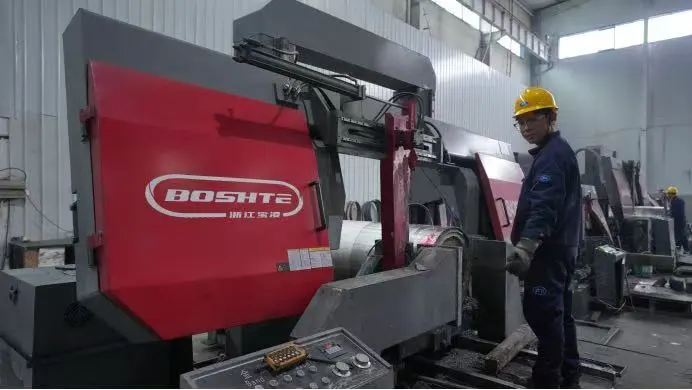

The journey begins with selecting the appropriate titanium alloy for the intended application. Common alloys include Ti-6Al-4V, Ti-6Al-2Sn-4Zr-2Mo, and CP (commercially pure) titanium. Once selected, the material is cut to size and heated to the optimal forging temperature.

Die design and fabrication

Simultaneously, engineers design and fabricate forging dies. These dies are typically made from high-strength tool steel and are precision-machined to create the desired shape of the final component.

Preforming

In many cases, the titanium billet undergoes a preforming stage. This involves shaping the material into a rough approximation of the final form, which helps distribute the metal more evenly during the main forging process.

Main forging operation

The heated titanium is then placed in the forging press between the dies. Enormous pressure is applied, typically in the range of thousands of tons, to shape the metal. This process may involve multiple strikes or a continuous application of pressure, depending on the specific forging titanium alloys technique being used.

Trimming and finishing

After forging, excess material (known as flash) is trimmed away. The component may then undergo additional machining, heat treatment, or surface finishing to achieve the final specifications.

Quality control and inspection

Rigorous quality control measures are implemented throughout the process. The finished components undergo thorough inspection, including dimensional checks, non-destructive testing, and sometimes destructive testing of sample pieces.

Hot forging vs. cold forging titanium: Which method delivers better results?

When it comes to forging titanium, manufacturers have two primary options: hot forging and cold forging. Each method has its unique advantages and challenges, and the choice between them depends on various factors, including the component's size, complexity, and intended application.

Hot forging titanium

Hot forging is the more common method for titanium components, particularly for larger or more complex shapes. In this process, the titanium is heated to temperatures typically ranging from 1600°F to 2100°F (870°C to 1150°C), depending on the specific alloy.

Advantages of hot forging titanium:

• Improved formability: The elevated temperature makes the metal more malleable, allowing for more complex shapes and deeper impressions.
• Lower force requirements: The softened metal requires less force to deform, reducing wear on tooling and equipment.
• Better grain structure: Hot forging can result in a more refined and uniform grain structure, enhancing the material's mechanical properties.
• Reduced residual stress: The high temperatures help to minimize residual stresses in the forged component.

Challenges of hot forging titanium:

• Oxidation: Titanium is highly reactive at elevated temperatures, requiring careful control of the forging atmosphere to prevent excessive oxidation.
• Die wear: The high temperatures can accelerate wear on forging dies, potentially increasing tooling costs.
• Energy consumption: Heating the titanium to forging temperatures requires significant energy input.

Cold forging titanium

Cold forging is performed at or near room temperature, typically below the material's recrystallization temperature. While less common for titanium than hot forging, cold forging can be advantageous in certain situations.

Advantages of cold forging titanium:

• Better dimensional accuracy: Cold forging typically results in tighter tolerances and better surface finish.
• Work hardening: The process can increase the strength and hardness of the material through work hardening.
• Lower energy consumption: Eliminating the need for heating reduces overall energy requirements.
• Reduced oxidation: Operating at lower temperatures minimizes oxidation concerns.

Challenges of cold forging titanium:

• Limited formability: Titanium's high strength and low ductility at room temperature limit the complexity of shapes that can be cold forged.
• Higher forces required: Significantly more force is needed to deform the metal at lower temperatures, necessitating more robust equipment.
• Increased tool wear: The higher forces can lead to accelerated wear on tooling.
• Residual stresses: Cold forging can introduce significant residual stresses in the component, which may require subsequent stress relief treatments.

Choosing the right method

The decision between hot and cold forging for titanium components depends on various factors:

• Component size and complexity: Hot forging is generally preferred for larger or more intricate parts.
• Production volume: Cold forging may be more economical for high-volume production of smaller, simpler components.
• Dimensional requirements: If extremely tight tolerances are needed, cold forging might be advantageous.
• Material properties: Some titanium alloys are more amenable to cold forging than others.
• Post-forging operations: Consider any subsequent heat treatment or machining steps when selecting the forging method.

In many cases, a combination of hot and cold forging techniques may be employed to optimize the manufacturing process and achieve the desired material properties and component specifications.

Key temperature ranges for titanium forging

Temperature control is crucial in titanium forging, as it significantly impacts the material's behavior, microstructure, and final properties. Understanding the key temperature ranges helps manufacturers optimize their forging processes for different titanium alloys and component requirements.

Beta transus temperature

The beta transus temperature is a critical point in titanium forging. It's the temperature at which the material's crystal structure completely transforms from the alpha phase to the beta phase. This temperature varies depending on the specific titanium alloy but typically ranges from about 1700°F to 1850°F (925°C to 1010°C) for common alloys.

Forging above or below the beta transus can significantly affect the material's properties:

• Forging above beta transus: Results in a coarser grain structure and can improve formability but may reduce strength and ductility.
• Forging below beta transus: Produces a finer grain structure, enhancing strength and fatigue resistance.

Alpha+Beta forging range

Many titanium alloys are forged in the alpha+beta range, typically between 1450°F and 1750°F (790°C to 955°C). This temperature range allows for good formability while maintaining a fine grain structure and balanced mechanical properties.

Recrystallization temperature

The recrystallization temperature is the point at which new, strain-free grains begin to form in the deformed material. For titanium alloys, this typically occurs around 1200°F to 1400°F (650°C to 760°C). Forging above the recrystallization temperature can help refine the grain structure and relieve internal stresses.

Cold working range

Cold working of titanium is typically performed below 700°F (370°C). While challenging due to titanium's high strength and low ductility at room temperature, cold working can impart unique properties and achieve tight dimensional tolerances.

Temperature control considerations

Precise temperature control throughout the forging process is essential for several reasons:

• Microstructure control: Different temperature ranges produce varying grain structures and phase compositions, directly impacting the material's properties.
• Flow stress: The material's resistance to deformation changes with temperature, affecting the required forging forces and energy.
• Die life: Proper temperature management can help extend the life of forging dies by reducing thermal fatigue and wear.
• Oxidation prevention: Controlling the temperature and atmosphere helps minimize unwanted oxidation of the titanium surface.

Advanced forging facilities employ sophisticated temperature monitoring and control systems to maintain precise thermal conditions throughout the forging process. This may include induction heating, resistance furnaces, and specialized die heating systems.

Alloy-specific considerations

Different titanium alloys have unique optimal forging temperature ranges based on their composition and intended properties. For example:

• Ti-6Al-4V: Commonly forged between 1700°F and 1800°F (925°C to 980°C)
• Ti-6Al-2Sn-4Zr-2Mo: Often forged at slightly higher temperatures, around 1750°F to 1850°F (955°C to 1010°C)
• CP Titanium: Can be forged at lower temperatures, typically 1300°F to 1600°F (700°C to 870°C)

Metallurgists and process engineers carefully consider these temperature ranges when developing forging procedures for specific components and alloys.

Conclusion

The titanium forging process is a complex yet invaluable manufacturing technique that enables the creation of high-performance components for critical applications. By understanding the step-by-step process, comparing hot and cold forging methods, and mastering the key temperature ranges, manufacturers can optimize their titanium forging operations to produce components with exceptional strength, durability, and precision.

As industries continue to push the boundaries of material performance, titanium forging remains at the forefront of advanced manufacturing, delivering components that meet the most demanding requirements across aerospace, medical, energy, and industrial sectors.
