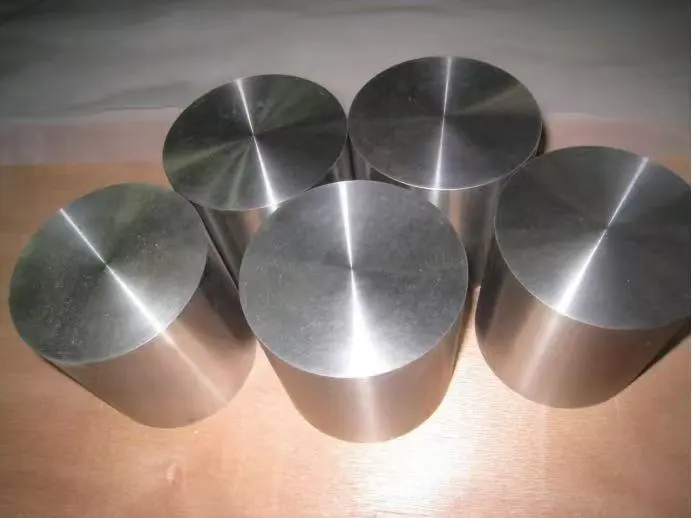

Titanium rods are essential components in various industries, from aerospace to medical applications. Their unique properties, including high strength-to-weight ratio, corrosion resistance, and biocompatibility, make them invaluable in numerous advanced applications. This article delves into the intricate process of manufacturing titanium rods, exploring the primary methods, quality considerations, and finishing techniques.

What Are the Primary Methods for Producing Titanium Rods?

The production of titanium rods involves several sophisticated methods, each tailored to achieve specific material properties and dimensions. The most common techniques include:

1. Ingot Casting and Forging

This method begins with the creation of a titanium ingot through vacuum arc remelting (VAR) or electron beam melting (EBM). The ingot is then subjected to a series of forging operations, where it's heated and shaped using powerful presses. This process refines the grain structure, enhancing the rod's strength and uniformity.

2. Powder Metallurgy

In this approach, titanium powder is compacted and sintered to form a near-net-shape rod. This method is particularly useful for producing rods with complex geometries or those requiring specific porosity levels. It's often employed in the creation of medical implants where controlled porosity can promote osseointegration.

3. Extrusion

Extrusion involves forcing heated titanium through a die with the desired cross-sectional shape. This method is excellent for producing long, uniform rods with consistent properties along their length. It's particularly effective for creating GR1 titanium rods, known for their high purity and excellent corrosion resistance.

4. Rotary Swaging

This technique uses rapidly oscillating dies to reduce the diameter of a titanium workpiece. It's often used as a secondary process to refine the dimensions and improve the surface finish of rods produced by other methods. Rotary swaging can significantly enhance the mechanical properties of the rod through cold working.

Each of these methods has its own set of advantages and is chosen based on the specific requirements of the end product. Factors such as the desired mechanical properties, dimensional accuracy, and production volume all play a role in determining the most suitable manufacturing approach.

How Does the Forging Ratio Affect Titanium Rod Quality?

The forging ratio is a critical parameter in the production of titanium rods, particularly those manufactured through the ingot-to-forging route. It's defined as the ratio of the initial cross-sectional area of the ingot to the final cross-sectional area of the forged rod. This ratio has a profound impact on the microstructure and, consequently, the mechanical properties of the finished product.

Impact on Grain Structure

A higher forging ratio typically results in a finer, more uniform grain structure. This is due to the increased deformation and recrystallization that occurs during the forging process. Finer grains contribute to improved strength, ductility, and fatigue resistance in the titanium rod.

Anisotropy Reduction

Proper forging helps to break down the columnar grain structure that can form during ingot solidification. This reduction in anisotropy leads to more consistent properties in all directions, which is crucial for applications where the rod may be subjected to multi-axial stresses.

Defect Elimination

Higher forging ratios can help close internal voids or porosity that may have formed during the ingot casting process. This results in a denser, more homogeneous rod with improved mechanical integrity.

Optimal Forging Ratio

While a higher forging ratio generally leads to better properties, there's a point of diminishing returns. Excessive forging can lead to overworking of the material, potentially causing unwanted grain growth or texture formation. The optimal forging ratio depends on factors such as the specific titanium alloy, the desired final properties, and the intended application of the rod.

For example, aerospace-grade titanium rods often require higher forging ratios to meet stringent performance criteria, while medical-grade rods might prioritize biocompatibility and may not need such extensive working.

What Role Does Electrochemical Polishing Play in Titanium Rod Production?

Electrochemical polishing, also known as electropolishing, is a crucial finishing step in the production of high-quality titanium rods, particularly for applications requiring exceptional surface properties. This process involves the controlled removal of material from the rod's surface through an electrochemical reaction.

The Electropolishing Process

In electrochemical polishing, the titanium rod is immersed in an electrolyte solution and connected as the anode in an electrical circuit. When current is applied, metal ions are selectively removed from the surface, preferentially attacking microscopic peaks and leaving a smoother surface behind.

Benefits of Electropolishing for Titanium Rods

1. Enhanced Corrosion Resistance: Electropolishing removes surface impurities and creates a uniform oxide layer, significantly improving the rod's resistance to corrosive environments.

2. Improved Biocompatibility: For medical-grade titanium rods, electropolishing creates an ultra-smooth surface that reduces the risk of bacterial adhesion and improves integration with biological tissues.

3. Reduced Surface Roughness: The process can achieve extremely low surface roughness values, which is critical for applications where friction or fluid dynamics are concerns.

4. Deburring and Stress Relief: Electropolishing effectively removes burrs and microscopic surface defects while also reducing residual stresses from previous manufacturing steps.

5. Aesthetics: The process imparts a bright, lustrous finish to the titanium rod, which can be important for visible components in aerospace or consumer products.

Considerations in Electropolishing Titanium Rods

While electropolishing offers numerous benefits, it requires careful control of process parameters. Factors such as current density, electrolyte composition, and polishing time must be optimized for the specific titanium alloy and desired surface characteristics. Over-polishing can lead to dimensional changes or unwanted etching of the surface.

For GR1 titanium rods, which are prized for their purity, the electropolishing process must be particularly well-controlled to maintain the material's composition while achieving the desired surface finish.

Advanced Electropolishing Techniques

Recent advancements in electropolishing technology have led to more sophisticated processes tailored specifically for titanium alloys. Pulse electropolishing, for instance, allows for even finer control over the material removal process, resulting in superior surface finishes with minimal impact on the rod's dimensional tolerances.

Some manufacturers are also exploring the use of ionic liquids as electrolytes in titanium electropolishing. These novel electrolytes offer the potential for more environmentally friendly processes and can sometimes achieve superior results compared to traditional acid-based electrolytes.

Quality Control in Electropolished Titanium Rods

After electropolishing, titanium rods undergo rigorous quality control measures. These may include:

• Surface roughness measurements using profilometry
• Corrosion resistance testing through potentiodynamic polarization
• Microscopic examination of the surface structure
• Chemical composition analysis to ensure no contamination from the electropolishing process

These quality control steps ensure that the electropolished titanium rods meet the exacting standards required for critical applications in aerospace, medical, and other high-performance industries.

Conclusion

The manufacturing of titanium rods is a complex process that requires a deep understanding of metallurgy, materials science, and advanced manufacturing techniques. From the initial production methods to the final finishing processes like electrochemical polishing, each step plays a crucial role in determining the rod's final properties and performance characteristics.

As technology advances, we can expect to see further refinements in titanium rod production, potentially leading to even stronger, lighter, and more versatile materials. These advancements will continue to push the boundaries of what's possible in industries ranging from aerospace to medical implants, further cementing titanium's status as a material of the future.

For industries requiring high-performance titanium components, partnering with a reputable manufacturer is crucial. Baoji Yongshengtai Titanium Industry Co., Ltd. (YSTI) specializes in the production of premium titanium alloy products, including titanium rods, plates, and forgings. With a focus on research and development, YSTI offers tailored solutions for aerospace, medical, chemical, energy, automotive, and industrial sectors. Their products meet international standards such as AMS, ASTM, ASME, ISO, MIL, DIN, and JIS, ensuring the highest quality for critical applications. For more information on their titanium and zirconium products, including GR1 titanium rods and custom titanium solutions, contact YSTI at ysti@ysti.net. Their expertise in titanium manufacturing can help you find the perfect material solution for your specific industry needs.

References

1. Johnson, A. R. (2020). Advanced Manufacturing Processes for Titanium Alloys. Journal of Materials Engineering and Performance, 29(8), 4872-4885.
2. Smith, L. K., & Davis, R. T. (2019). Influence of Forging Parameters on Titanium Rod Properties. Materials Science and Engineering: A, 750, 12-24.
3. Zhang, Y., & Chen, X. (2021). Electrochemical Polishing of Titanium Alloys: A Comprehensive Review. Surface and Coatings Technology, 403, 126384.
4. Brown, E. M., et al. (2018). Powder Metallurgy Techniques for Titanium Rod Production. International Journal of Powder Metallurgy, 54(3), 45-52.
5. Lee, S. H., & Park, J. W. (2022). Recent Advancements in Titanium Extrusion for High-Performance Rods. Journal of Materials Processing Technology, 300, 117345.
6. Wilson, T. G., & Thompson, R. A. (2023). Quality Control Methods in Titanium Rod Manufacturing. Materials Evaluation, 81(2), 177-189.
