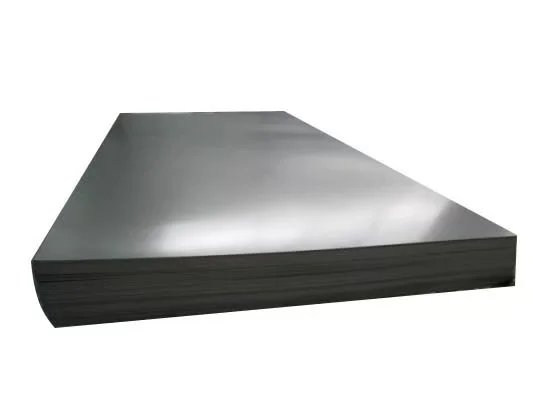

Zirconium plates are indispensable components in various high-tech industries, ranging from nuclear power to chemical processing. The flatness of these plates is crucial for their performance and longevity in demanding applications. This comprehensive guide will explore the techniques, equipment, and methods used to ensure the flatness of zirconium plate, providing valuable insights for manufacturers and quality control professionals alike.

Precision Leveling Techniques for Zirconium Plates During Manufacturing

Achieving optimal flatness in zirconium alloy plates begins with the manufacturing process itself. Several precision leveling techniques are employed to minimize deviations and produce plates that meet stringent flatness requirements.

Cold Rolling and Tension Leveling

Cold rolling is a fundamental process in zirconium plate production. It involves passing the material through a series of rollers at room temperature, which not only reduces thickness but also improves flatness. Following cold rolling, tension leveling is often applied to further enhance flatness.

Tension leveling works by stretching the plate under controlled tension while simultaneously bending it over a series of small-diameter rolls. This process helps to distribute residual stresses evenly across the plate, resulting in improved flatness and reduced tendency for warping.

Precision Grinding and Lapping

For applications demanding the highest levels of flatness, precision grinding and lapping techniques are employed. These processes remove minute amounts of material from the plate surface, creating an exceptionally flat and smooth finish.

Precision grinding utilizes specialized grinding wheels and advanced CNC machinery to achieve tolerances as tight as ±0.0005 inches across the entire plate surface. Lapping, a more refined process, uses abrasive slurries and precision-engineered lapping plates to produce even tighter tolerances and superior surface finishes.

Controlled Cooling and Stress Relief

The cooling process after hot rolling or annealing is critical in maintaining plate flatness. Controlled cooling techniques, such as slow cooling in a furnace or specialized cooling beds, help minimize thermal stresses that can lead to warping.

Additionally, stress relief heat treatments are often performed to reduce residual stresses within the zirconium plate. These treatments involve heating the plate to a specific temperature below its recrystallization point, holding it for a predetermined time, and then cooling it slowly. This process helps to relax internal stresses without altering the material's microstructure, thereby improving dimensional stability and flatness.

Measuring and Verifying Flatness: Equipment and Methods for Quality Control

Ensuring the flatness of zirconium plates requires precise measurement and verification techniques. Advanced equipment and methodologies are employed to quantify flatness deviations and ensure compliance with industry standards.

Coordinate Measuring Machines (CMM)

Coordinate Measuring Machines are versatile tools used for high-precision flatness measurements. These machines utilize a probe that moves along three axes to map the surface of the zirconium plate. The data collected is then processed to generate a three-dimensional representation of the plate's surface, allowing for detailed analysis of flatness deviations.

CMMs can achieve measurement accuracies of up to 0.1 microns, making them ideal for verifying the flatness of precision-engineered zirconium plates. They also offer the advantage of being able to measure complex geometries and provide comprehensive flatness reports.

Laser Interferometry

Laser interferometry is a non-contact measurement technique that offers exceptional accuracy in flatness assessment. This method uses the interference patterns of laser light reflected off the plate surface to create a high-resolution map of surface variations.

The advantages of laser interferometry include rapid data acquisition, the ability to measure large surface areas, and extremely high precision, with some systems capable of detecting surface variations as small as a few nanometers. This makes it particularly useful for verifying the flatness of large zirconium alloy plates used in applications such as nuclear reactor components.

Optical Flatness Testers

Optical flatness testers, also known as autocollimators, are specialized instruments designed specifically for flatness measurement. These devices project a collimated light beam onto the plate surface and analyze the reflected light to determine surface deviations.

Optical flatness testers are particularly useful for rapid, in-process flatness checks during manufacturing. They can quickly identify areas of concern, allowing for immediate corrective action. While not as precise as CMMs or laser interferometry, they offer a good balance of speed and accuracy for many quality control applications.

Statistical Process Control (SPC)

Beyond individual measurement techniques, implementing a robust Statistical Process Control system is crucial for maintaining consistent flatness in zirconium plate production. SPC involves collecting and analyzing data from multiple measurements over time to identify trends, detect process shifts, and prevent out-of-specification products from being produced.

By establishing control charts for flatness measurements and monitoring key process parameters, manufacturers can proactively adjust their processes to maintain optimal flatness. This data-driven approach not only ensures consistent quality but also helps in continuous process improvement.

Stress-Relieving Methods to Prevent Warping in Thin Zirconium Plates

Thin zirconium plates are particularly susceptible to warping due to residual stresses. Implementing effective stress-relieving methods is essential to maintain flatness and prevent distortion during subsequent processing or use.

Vacuum Annealing

Vacuum annealing is a highly effective stress-relieving method for thin zirconium plates. This process involves heating the plates in a vacuum furnace to temperatures typically ranging from 700°C to 800°C, depending on the specific zirconium alloy composition.

The vacuum environment prevents oxidation of the zirconium surface, which is particularly important for thin plates where even minimal oxidation could affect dimensional stability. The controlled heating and cooling cycles allow for the relaxation of internal stresses without compromising the material's mechanical properties.

Vibratory Stress Relief

Vibratory stress relief is a non-thermal method that can be particularly useful for thin zirconium plates where thermal processes might introduce unwanted distortion. This technique involves subjecting the plate to controlled, low-frequency vibrations that help to redistribute and relieve internal stresses.

The advantages of vibratory stress relief include its ability to be performed at room temperature, minimal risk of dimensional changes, and the potential for treating large or complex-shaped plates. However, it may not be as effective as thermal methods for severely stressed components.

Cryogenic Treatment

Cryogenic treatment is an emerging stress-relief method that involves cooling the zirconium plates to extremely low temperatures, typically around -196°C (the temperature of liquid nitrogen). This process can help to relieve residual stresses and improve dimensional stability.

The extreme cold causes the material's crystal structure to contract and then expand uniformly upon returning to room temperature. This cyclic process can help to equalize internal stresses and potentially improve the overall flatness of thin zirconium plates.

Controlled Plasticity Burnishing

Controlled plasticity burnishing is a surface treatment method that can be used to induce compressive stresses in the surface layer of thin zirconium plates. This process involves rolling a highly polished ball or roller across the plate surface under controlled pressure.

The induced compressive stresses can help to counteract residual tensile stresses that may cause warping. Additionally, this process can improve surface finish and fatigue resistance, making it a multifunctional treatment for enhancing the overall quality of thin zirconium plates.

Iterative Heat Treatment and Flattening

For particularly challenging cases, an iterative approach combining heat treatment and mechanical flattening may be necessary. This process involves alternating between stress-relief heat treatments and precision flattening operations, such as rolling or pressing.

By gradually working out the residual stresses and adjusting the plate's shape, this method can achieve exceptional flatness in thin zirconium plates. However, it requires careful control and monitoring to avoid introducing new stresses or compromising the material's properties.

Ensuring the flatness of zirconium plates is a complex process that requires a combination of precision manufacturing techniques, advanced measurement methods, and effective stress-relief strategies. By implementing these approaches, manufacturers can produce high-quality zirconium plate products that meet the exacting standards of industries such as aerospace, nuclear power, and chemical processing.

For industries requiring high-performance materials with exceptional flatness and dimensional stability, zirconium plates offer unparalleled advantages. Whether you're in the aerospace sector seeking lightweight, corrosion-resistant components for aircraft engines, or in the chemical industry needing durable materials for reactors and heat exchangers, properly manufactured zirconium plates can meet your most demanding specifications.

At Baoji Yongshengtai Titanium Industry Co., Ltd., we specialize in producing high-quality zirconium and titanium products that meet the stringent requirements of advanced industrial applications. Our team of experts utilizes state-of-the-art manufacturing techniques and rigorous quality control processes to ensure that every zirconium plate we produce meets or exceeds industry standards for flatness and overall performance.

If you're looking for zirconium plates that offer superior flatness, corrosion resistance, and durability for your specialized applications in aerospace, medical, chemical, energy, automotive, or industrial sectors, we invite you to explore our range of products. Our experienced team is ready to assist you in selecting the right zirconium solution for your specific needs. Contact us today via online message to learn more about how our precision-engineered zirconium plates can enhance the performance and reliability of your projects.
