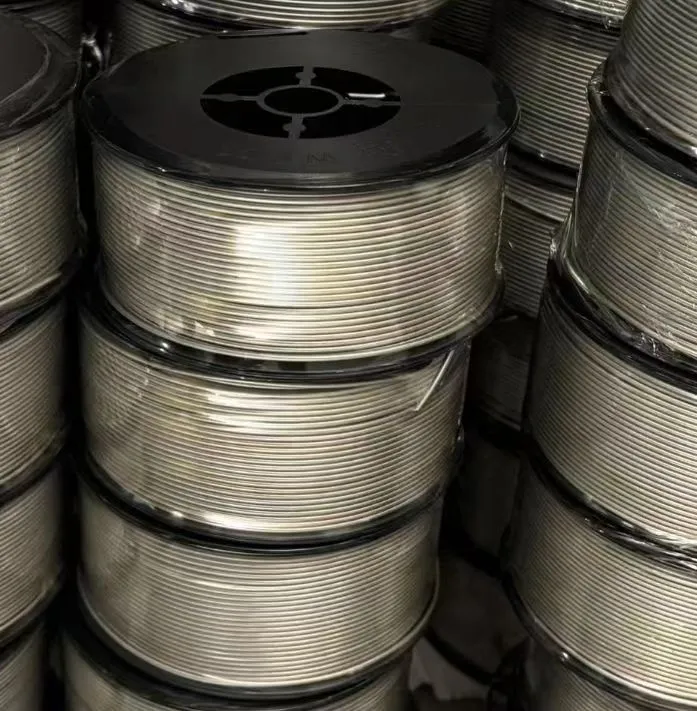

Welding zirconium wire for chemical equipment requires precision, expertise, and adherence to specific best practices. Zirconium's exceptional corrosion resistance and high-temperature strength make it an ideal material for various chemical processing applications. However, its reactivity with atmospheric gases at elevated temperatures necessitates special welding techniques. This comprehensive guide will explore the nuances of welding zirconium wire, focusing on TIG welding practices, shielding gas selection, and post-weld heat treatment considerations.

TIG welding zirconium wire: Best practices to prevent contamination

TIG (Tungsten Inert Gas) welding is the preferred method for joining zirconium alloy components due to its precision and ability to produce high-quality welds. However, zirconium's high affinity for oxygen, nitrogen, and hydrogen at welding temperatures makes contamination a significant concern. To ensure optimal weld quality and maintain the material's corrosion resistance, consider the following best practices:

Meticulous cleaning and preparation

Before welding, thoroughly clean the zirconium wire and base materials. Remove all traces of dirt, oil, grease, and other contaminants using acetone or other suitable solvents. Mechanical cleaning methods, such as stainless steel wire brushing or grinding, should be performed with dedicated tools to prevent cross-contamination from other metals.

Inert gas shielding

Utilize high-purity inert gases to shield the weld pool and surrounding heat-affected zone (HAZ) from atmospheric contamination. Argon is commonly used due to its effectiveness and affordability. Ensure proper gas flow rates and coverage to maintain a protective atmosphere throughout the welding process.

Welding in controlled environments

For optimal results, consider welding zirconium wire in a glove box or purged chamber filled with inert gas. This approach provides the highest level of protection against contamination, especially for critical applications in the chemical industry.

Electrode selection and preparation

Use thoriated or lanthanated tungsten electrodes for improved arc stability and longevity. Grind the electrode to a sharp point and maintain cleanliness to prevent contamination of the weld pool.

Shielding gas selection for zirconium wire welding: Argon vs. helium mixtures

Selecting the appropriate shielding gas is crucial for achieving high-quality welds when working with zirconium wire. While pure argon is commonly used, helium-based mixtures offer certain advantages in specific situations. Let's explore the characteristics and applications of these shielding gas options:

Pure argon shielding

Argon remains the most widely used shielding gas for zirconium welding due to its:

- Excellent arc stability

- Lower ionization potential, facilitating easier arc initiation

- Cost-effectiveness

- Availability

For most zirconium wire welding applications in chemical equipment, high-purity argon (99.999%) provides adequate protection and weld quality.

Helium-argon mixtures

Adding helium to the shielding gas mixture can offer several benefits:

- Increased heat input, resulting in deeper penetration

- Higher travel speeds

- Improved weld bead profile

Common helium-argon mixtures for zirconium welding include:

- 75% helium / 25% argon: Provides a good balance between penetration and arc stability

- 90% helium / 10% argon: Offers maximum penetration for thicker sections

Choosing the optimal shielding gas

Consider the following factors when selecting a shielding gas for your zirconium wire welding project:

- Material thickness: Helium-rich mixtures are beneficial for thicker sections

- Joint configuration: Complex joint geometries may benefit from the increased fluidity of helium-containing gases

- Welding position: Overhead and vertical welding may require adjustments to gas composition

- Economic considerations: Balance performance benefits with cost implications

Post-weld heat treatment: Is it necessary for corrosion resistance?

Post-weld heat treatment (PWHT) is a critical consideration when welding zirconium wire for chemical equipment. While zirconium's natural corrosion resistance is excellent, the welding process can alter the material's microstructure and potentially impact its performance in corrosive environments. Let's examine the necessity and benefits of PWHT for zirconium welds:

Understanding the impact of welding on zirconium's properties

Welding zirconium wire can lead to:

- Grain growth in the heat-affected zone (HAZ)

- Formation of brittle intermetallic compounds

- Residual stresses

- Potential for micro-segregation of alloying elements

These changes can affect the material's mechanical properties and corrosion resistance, particularly in aggressive chemical environments.

Benefits of post-weld heat treatment

PWHT for zirconium welds can provide several advantages:

- Stress relief: Reduces residual stresses induced during welding

- Homogenization: Promotes uniform distribution of alloying elements

- Recrystallization: Refines grain structure in the weld and HAZ

- Improved corrosion resistance: Enhances the stability of the protective oxide layer

PWHT considerations for zirconium wire welds

When determining the necessity and parameters for post-weld heat treatment, consider:

- Service environment: More aggressive chemical environments may require PWHT to ensure optimal corrosion resistance

- Weld joint configuration: Complex geometries or highly restrained joints benefit from stress relief

- Material grade: Some zirconium alloys are more sensitive to welding-induced property changes than others

- Regulatory requirements: Certain industries or applications may mandate PWHT for zirconium welds

Typical PWHT parameters for zirconium welds

While specific heat treatment parameters depend on the zirconium alloy and application, general guidelines include:

- Temperature range: 540°C to 750°C (1000°F to 1380°F)

- Hold time: 1 to 4 hours

- Cooling rate: Slow cooling in furnace or air cooling

It's crucial to consult alloy-specific guidelines and consider the intended service conditions when determining the optimal PWHT regime for your zirconium wire welds.

Alternatives to traditional PWHT

In some cases, alternative methods may be employed to achieve similar benefits:

- Local heat treatment: Useful for large structures or field repairs

- Mechanical stress relief: Vibratory stress relief techniques can be effective for certain applications

- Optimized welding procedures: Careful control of heat input and interpass temperatures can minimize the need for PWHT in some situations

Welding zirconium wire for chemical equipment demands a thorough understanding of material properties, welding techniques, and post-weld treatments. By adhering to best practices in TIG welding, selecting appropriate shielding gases, and carefully considering post-weld heat treatment options, fabricators can ensure the production of high-quality, corrosion-resistant zirconium components for demanding chemical processing applications.
