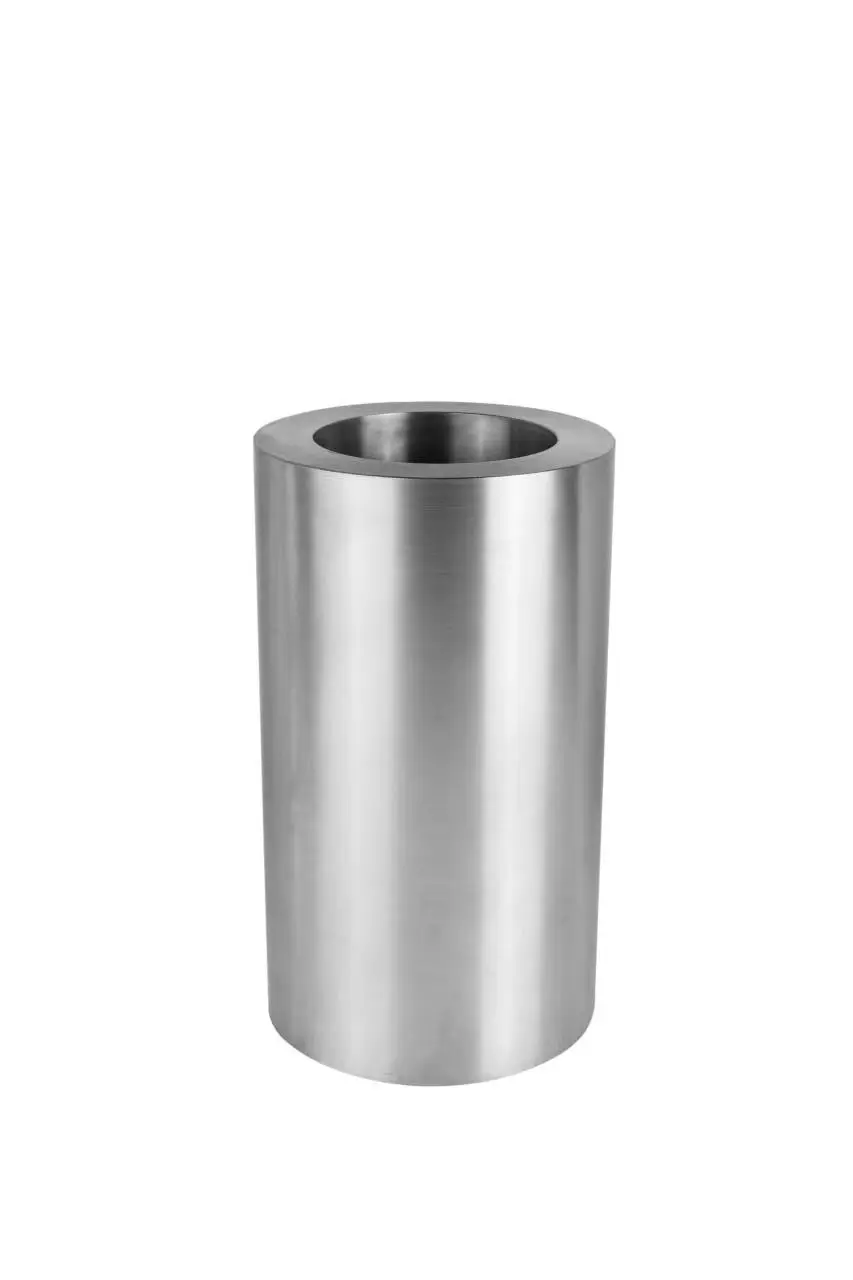

Titanium tubes are marvels of modern engineering, combining lightweight properties with exceptional strength and corrosion resistance. These versatile components play a crucial role in various industries, from aerospace to medical technology. But have you ever wondered how these remarkable titanium alloy tubes are manufactured? Let's delve into the fascinating world of titanium tube production and explore the intricate processes that bring these high-performance materials to life.

Cold rolling and hot extrusion: How are titanium tubes formed?

The journey of a titanium tube begins with raw titanium, typically in the form of ingots or billets. These primary materials undergo a series of transformations to achieve the desired tubular shape and properties. Two primary methods are employed in the formation of titanium tubes: cold rolling and hot extrusion.

Cold Rolling: Precision in Motion

Cold rolling is a process that occurs at room temperature, where the titanium is passed through a series of rollers that gradually reduce its thickness and shape it into a tube. This method is particularly effective for producing titanium tubes with precise dimensions and excellent surface finish.

The process begins with a flat titanium strip, which is carefully fed through multiple rolling stands. Each stand consists of carefully calibrated rollers that apply pressure to the metal, elongating it and reducing its thickness. As the titanium passes through successive stands, it gradually takes on a circular shape, eventually forming a tube.

One of the key advantages of cold rolling is the ability to achieve tight tolerances and superior mechanical properties. The work hardening that occurs during the process enhances the strength and hardness of the titanium, making it ideal for applications that require high performance under stress.

Hot Extrusion: Shaping with Heat

Hot extrusion involves heating titanium to temperatures between 800°C and 1000°C, making it more malleable for significant deformation without cracking. A titanium billet is placed in a container and forced through a die using a hydraulic press, shaping the material into a seamless tube with consistent wall thickness. This process is ideal for creating tubes with large diameters or complex cross-sections. The elevated temperatures also refine the titanium’s grain structure, enhancing its mechanical properties.

Combining Techniques for Optimal Results

In many cases, manufacturers employ a combination of hot extrusion and cold rolling to produce titanium tubes. This hybrid approach allows for the benefits of both methods to be leveraged, resulting in tubes with exceptional quality and performance characteristics.

For instance, a tube might be initially formed through hot extrusion to create the basic shape and then further refined through cold rolling to achieve precise dimensions and enhance mechanical properties. This combination of techniques enables manufacturers to create titanium alloy tubes that meet the exacting standards required by industries such as aerospace and medical technology.

Precision machining of titanium tubes: What tolerances can be achieved?

Once the basic form of the titanium tube is created through rolling or extrusion, precision machining steps are often required to achieve the final desired specifications. The machining of titanium tubes is a highly specialized process that demands advanced equipment and expertise due to the material's unique properties.

Turning: Achieving Circular Perfection

Turning is a fundamental machining operation used to refine the outer diameter of titanium tubes. Computer Numerical Control (CNC) lathes are typically employed for this task, allowing for incredibly precise control over the cutting process.

During turning, the titanium tube is rotated at high speeds while a cutting tool moves along its length, removing material to achieve the desired diameter. The precision of modern CNC lathes allows for tolerances as tight as ±0.0005 inches (0.0127 mm) on the outer diameter of the tube.

Boring: Perfecting the Inner Dimensions

While turning addresses the outer surface of the tube, boring is used to refine the inner diameter. This process involves using specialized cutting tools that can reach inside the tube to remove material and achieve the required internal dimensions.

Boring titanium tubes requires careful control of cutting speeds and feed rates to prevent tool wear and maintain dimensional accuracy. With advanced boring techniques, inner diameter tolerances of ±0.001 inches (0.0254 mm) or better can be achieved.

Milling: Creating Complex Features

For titanium tubes that require additional features such as slots, holes, or contoured surfaces, milling operations are employed. Multi-axis CNC milling machines allow for the creation of intricate geometries with high precision.

The milling of titanium tubes often involves the use of specialized cutting tools and cooling strategies to manage the heat generated during the machining process. With state-of-the-art milling equipment, features can be machined to tolerances of ±0.0005 inches (0.0127 mm) or better.

Grinding: The Ultimate in Precision

When the utmost in dimensional accuracy and surface finish is required, grinding processes are employed. Centerless grinding, for example, can be used to achieve extremely tight tolerances on the outer diameter of titanium tubes.

In centerless grinding, the tube is passed between a grinding wheel and a regulating wheel, which controls the rotation and feed of the workpiece. This process can achieve roundness tolerances as tight as 0.00005 inches (0.00127 mm) and diameter tolerances of ±0.0001 inches (0.00254 mm).

How are Titanium Tube defects detected?

Ensuring the integrity and quality of titanium tubes is paramount, especially considering their critical applications in aerospace, medical, and industrial sectors. Detecting defects in these high-performance components requires a combination of sophisticated technologies and meticulous inspection procedures.

Non-Destructive Testing (NDT) Methods

Non-destructive testing techniques play a crucial role in identifying defects in titanium tubes without compromising their structural integrity. Several NDT methods are commonly employed in the inspection of titanium tubing:

Ultrasonic Testing (UT)

Ultrasonic testing is a widely used method for detecting internal defects in titanium tubes. High-frequency sound waves are transmitted through the material, and the reflected signals are analyzed to identify inconsistencies such as cracks, voids, or inclusions.

Advanced ultrasonic techniques, such as phased array ultrasonic testing (PAUT), allow for even more detailed imaging of the tube's internal structure. PAUT can detect defects as small as 0.2 mm in some cases, making it an invaluable tool for ensuring the quality of critical components.

Eddy Current Testing (ECT)

Eddy current testing is particularly effective for detecting surface and near-surface defects in titanium tubes. This method induces electromagnetic fields in the material and analyzes the changes in these fields to identify anomalies.

ECT is capable of detecting minute surface cracks, pits, and other imperfections that might be invisible to the naked eye. It's especially useful for inspecting the inner surfaces of tubes, where visual inspection may be challenging.

Radiographic Testing (RT)

X-ray and gamma-ray radiography provide a means of visualizing the internal structure of titanium tubes. This technique is particularly useful for detecting volumetric defects such as porosity or inclusions.

Digital radiography has revolutionized this field, allowing for real-time imaging and enhanced defect detection capabilities. With modern radiographic techniques, defects as small as 1-2% of the wall thickness can be reliably detected in titanium tubes.

Visual and Dimensional Inspection

While advanced NDT methods are crucial for detecting internal defects, visual and dimensional inspections remain essential components of the quality control process for titanium tubes.

Optical Inspection Systems

High-resolution cameras and sophisticated image processing software are used to inspect the surface of titanium tubes for visible defects such as scratches, dents, or discoloration. These systems can detect surface anomalies with incredible precision, often identifying defects that would be missed by human inspectors.

Laser Measurement

Laser-based measurement systems are employed to verify the dimensional accuracy of titanium tubes. These systems can measure outer diameter, inner diameter, wall thickness, and straightness with micron-level precision.

By scanning the entire length of the tube, laser measurement systems can create detailed profiles that highlight any deviations from the specified dimensions. This is particularly important for ensuring the consistency of titanium alloy tubes used in critical applications.

By leveraging advanced defect detection technologies and rigorous inspection protocols, manufacturers can ensure that titanium tubes meet the exacting standards required for critical applications across various industries.

Conclusion

The production of titanium tubes is a testament to the ingenuity and precision of modern manufacturing techniques. From the initial forming processes of cold rolling and hot extrusion to the meticulous machining operations and rigorous defect detection methods, every step is carefully orchestrated to create components that meet the highest standards of quality and performance.

For those in industries that demand the utmost in material performance, such as aerospace, defense, medical, chemical processing, energy, or automotive sectors, the choice of titanium tubing supplier is crucial. Baoji Yongshengtai Titanium Industry Co., Ltd. stands at the forefront of titanium alloy manufacturing, offering a comprehensive range of high-quality titanium products, including precision tubes that meet the most stringent international standards.

With a proven track record of innovation, including 10 invention patents and 40 utility model patents, YSTI is well-equipped to provide custom solutions that address the unique challenges of your industry. Whether you require corrosion-resistant piping for chemical processing, lightweight components for aerospace applications, or biocompatible materials for medical devices, YSTI's expertise in titanium alloy fabrication ensures that you'll receive products that meet and exceed your expectations. Contact us today via online message to discuss your specific requirements and discover the YSTI difference in titanium alloy manufacturing.
