Preheating Process: Crucial Steps for Titanium Forging

The preheating process is a critical phase in titanium forging, setting the stage for successful material manipulation. Proper preheating ensures optimal workability and prevents defects in the final product.

Temperature Control in Titanium Preheating

Precise temperature control is paramount when preheating titanium for forging. The ideal temperature range typically falls between 1600°F and 1800°F (870°C to 982°C), depending on the specific titanium alloy composition. This temperature range softens the metal sufficiently without compromising its structural integrity.

Uniform Heat Distribution

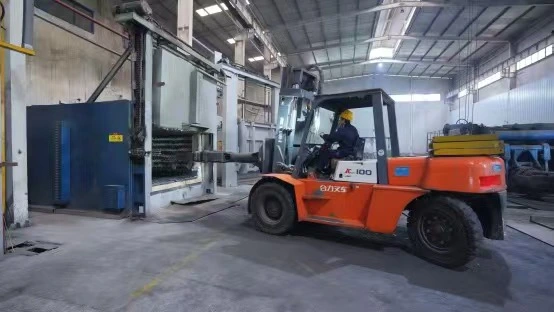

Achieving uniform heat distribution throughout the titanium workpiece is essential. Uneven heating can lead to inconsistent material properties and potential defects in the forged component. Industrial furnaces with advanced temperature control systems are often employed to ensure homogeneous heating.

Atmosphere Control During Preheating

Controlling the atmosphere during preheating is crucial to prevent oxidation and contamination of the titanium surface. Inert gases like argon or helium are commonly used to create a protective environment, preserving the metal's purity and surface quality.

Forging Techniques: Hot vs. Cold Working Titanium

The choice between hot and cold working techniques in titanium alloy forging significantly impacts the final product's properties and the overall manufacturing process.

Hot Working Titanium

Hot working is the most common approach in titanium forging, typically performed at temperatures above the metal's recrystallization point.

Advantages of Hot Working:

• Enhanced material ductility
• Reduced forging forces required
• Ability to achieve complex shapes
• Improved grain structure refinement

Hot Working Process:

The titanium billet is heated to temperatures between 1600°F and 1800°F (870°C to 982°C). At these temperatures, the metal's crystalline structure becomes more malleable, allowing for easier deformation. The heated billet is then shaped using various forging techniques such as open-die forging, closed-die forging, or roll forging.

Cold Working Titanium

Cold working titanium occurs at temperatures below its recrystallization point, typically at room temperature or slightly elevated temperatures.

Advantages of Cold Working:

• Improved surface finish
• Tighter dimensional tolerances
• Increased strength through work hardening
• Lower energy consumption compared to hot working

Cold Working Process:

Cold working techniques for titanium include processes like cold rolling, swaging, and drawing. These methods are often used for producing smaller components or for finishing operations after hot working. The limited ductility of titanium at room temperature restricts the amount of deformation possible in a single pass, often necessitating intermediate annealing steps.

Hybrid Approaches: Warm Working

Warm working represents a middle ground between hot and cold working, performed at temperatures below the recrystallization point but above room temperature. This technique can offer a balance between the advantages of both hot and cold working, providing improved formability compared to cold working while maintaining some of the benefits of working at lower temperatures.

Post-Forging Treatments: Optimizing Titanium Properties

Post-forging treatments are essential steps in the titanium forging process, aimed at enhancing the mechanical properties and microstructure of the forged components.

Heat Treatment Processes

Heat treatment is a crucial post-forging operation that can significantly alter the properties of titanium alloys.

Solution Treatment:

This process involves heating the forged titanium component to a temperature above its beta transus point, typically between 1650°F and 1750°F (900°C to 955°C), followed by rapid cooling. Solution treatment dissolves secondary phases, creating a more homogeneous microstructure and improving the alloy's strength and ductility.

Aging:

Aging is often performed after solution treatment to precipitate fine, coherent particles within the titanium matrix. This process, typically carried out at temperatures between 900°F and 1100°F (480°C to 595°C), enhances the alloy's strength and hardness.

Surface Treatments

Surface treatments are employed to improve the wear resistance, corrosion resistance, and fatigue properties of forged titanium components.

Shot Peening:

Shot peening involves bombarding the surface of the forged titanium part with small, hard particles. This process induces compressive residual stresses in the surface layer, improving fatigue resistance and stress corrosion cracking resistance.

Anodizing:

Anodizing creates a protective oxide layer on the titanium surface through an electrochemical process. This treatment enhances corrosion resistance and can be used to impart color to the titanium surface for aesthetic or identification purposes.

Machining and Finishing

Post-forging machining and finishing operations are often necessary to achieve the final dimensions and surface quality required for the titanium component.

Precision Machining:

Computer Numerical Control (CNC) machining is commonly used to remove excess material and create intricate features on forged titanium parts. The high strength and low thermal conductivity of titanium necessitate specialized cutting tools and machining parameters.

Surface Finishing:

Various surface finishing techniques can be applied to titanium forgings, including grinding, polishing, and chemical milling. These processes improve surface smoothness, remove any scale or oxidation layer formed during forging, and enhance the component's aesthetic appeal.

Quality Control and Inspection

Rigorous quality control measures are implemented to ensure the integrity and performance of forged titanium components.

Non-Destructive Testing (NDT):

NDT methods such as ultrasonic testing, radiographic inspection, and dye penetrant testing are used to detect any internal or surface defects in the forged titanium parts without compromising their structural integrity.

Mechanical Testing:

Samples from the forged titanium components undergo various mechanical tests, including tensile testing, hardness testing, and fatigue testing, to verify that the material properties meet the required specifications.

Dimensional Inspection:

Advanced metrology equipment, such as coordinate measuring machines (CMMs) and 3D scanners, are employed to ensure that the forged titanium parts meet the specified dimensional tolerances.

The post-forging treatment phase is crucial in realizing the full potential of titanium forgings. By carefully selecting and implementing appropriate heat treatments, surface modifications, and finishing operations, manufacturers can produce titanium components with optimal mechanical properties, surface characteristics, and dimensional accuracy to meet the demanding requirements of various industrial applications.

Conclusion

Mastering the art of titanium forging requires a deep understanding of material science, precise control of process parameters, and careful selection of post-forging treatments. From the critical preheating stage to the final quality control measures, each step in the forging process plays a vital role in producing high-performance titanium components. As industries continue to demand lighter, stronger, and more durable materials, the importance of advanced titanium forging techniques will only grow.

For those in the aerospace, medical, chemical, energy, automotive, or industrial manufacturing sectors seeking high-quality titanium forgings, look no further than Baoji Yongshengtai Titanium Industry Co., Ltd. As a national high-tech enterprise specializing in titanium alloy precision parts, we offer a comprehensive range of titanium products, including forgings, that meet international standards. Our expertise in titanium forging ensures that we can meet your specific needs for high-strength, lightweight, and corrosion-resistant components. To learn more about our titanium forging capabilities and how we can support your project requirements, please contact us via online message. Let us help you harness the full potential of titanium for your advanced industrial applications.
