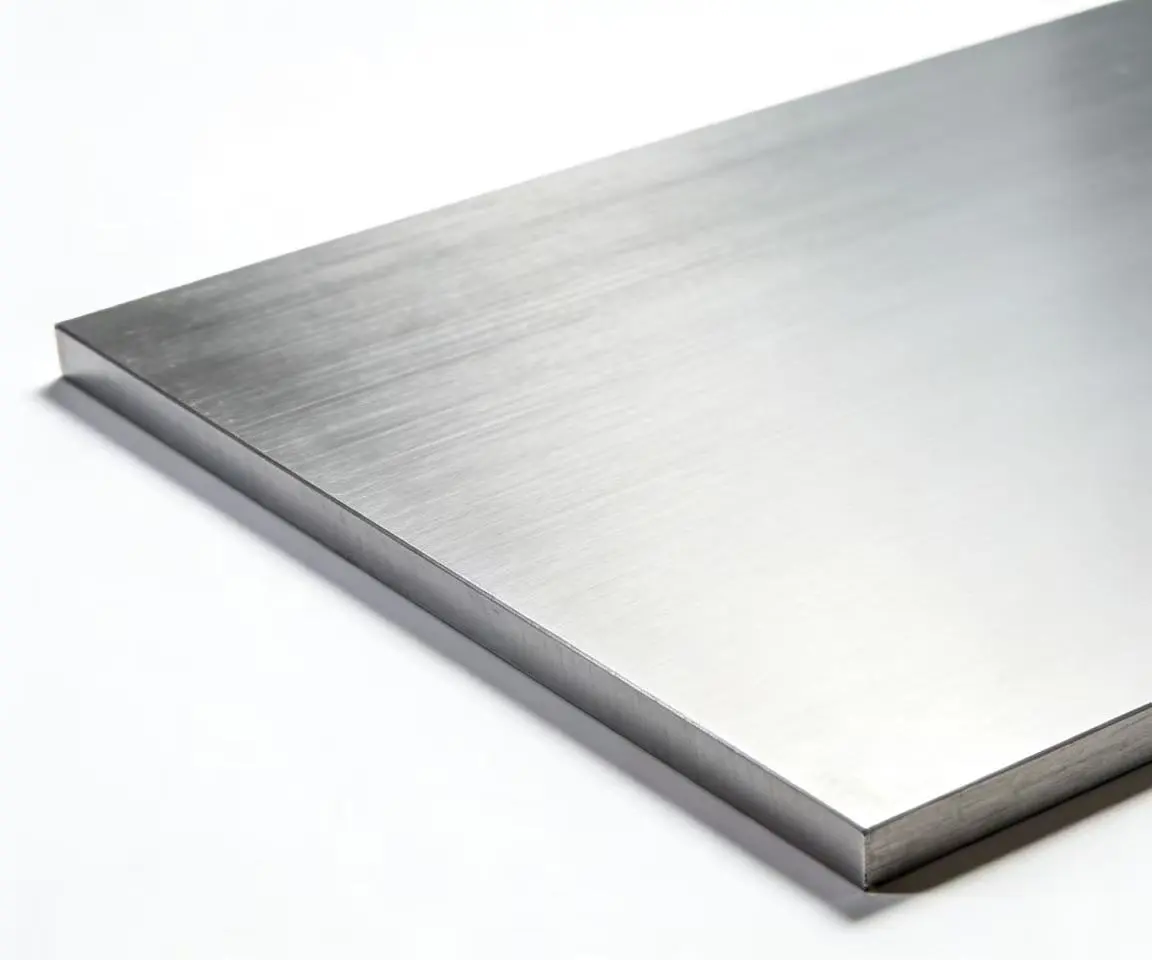

What Are the Best Machining Techniques for Zirconium R60702 Plate?

When it comes to machining Zirconium Alloy Plate, selecting the right techniques is crucial for achieving optimal results. Let's delve into some of the most effective methods:

Turning and Milling: Precision in Motion

Turning and milling are fundamental processes in zirconium plate machining. For turning operations, use carbide tools with positive rake angles and maintain moderate cutting speeds. When milling, opt for climb milling with sharp, coated carbide end mills to minimize work hardening and achieve smoother surface finishes.

Drilling: Penetrating the Surface

Drilling zirconium 702 plate requires attention to detail. Use carbide-tipped drills with a 118-degree point angle and apply steady pressure. It's essential to maintain consistent feed rates and use ample coolant to prevent overheating and work hardening.

Grinding: Achieving Smooth Perfection

For precision finishing, grinding is an excellent technique. Utilize silicon carbide or aluminum oxide wheels with a medium to fine grit. Keep the workpiece cool and use light passes to prevent heat buildup and maintain dimensional accuracy.

Zirconium Plate Machining: Tips for Cutting, Drilling & Finishing R60702

Mastering the art of machining Zirconium Alloy Plate involves more than just knowing the basic techniques. Here are some advanced tips to elevate your machining process:

Optimizing Cutting Parameters

When cutting R60702 zirconium plate, it's crucial to: - Use sharp, coated carbide tools to reduce friction and heat generation - Maintain moderate cutting speeds (30-60 m/min) to prevent work hardening - Apply generous amounts of coolant to dissipate heat effectively - Employ rigid workholding setups to minimize vibration and chatter

Precision Drilling Strategies

To achieve accurate and clean holes in zirconium plates: - Start with a center drill to ensure precise hole placement - Use peck drilling techniques to clear chips and prevent heat buildup - Maintain consistent feed rates to avoid work hardening - Consider using through-tool coolant delivery for deep holes

Finishing Techniques for Superior Surface Quality

Achieving a high-quality finish on R60702 zirconium plate requires: - Utilizing fine-grit abrasives for final passes - Implementing light cuts to minimize residual stresses - Considering electropolishing for ultra-smooth surfaces in critical applications - Using proper cleaning and deburring techniques to remove any machining artifacts

​​​​​​​

How to Avoid Common Challenges When Machining Zirconium Plates?

While machining zirconium 702 plate offers many benefits, it also presents unique challenges. Understanding and overcoming these obstacles is key to successful manufacturing:

Preventing Work Hardening

Zirconium is prone to work hardening, which can lead to tool wear and poor surface finish. To mitigate this: - Maintain consistent cutting speeds and feed rates - Use sharp tools and replace them regularly - Avoid dwelling or rubbing the workpiece with the cutting tool - Consider cryogenic cooling methods for extreme cases

Managing Heat Generation

Excessive heat can compromise the integrity of zirconium plates. Combat this by: - Employing high-pressure coolant systems - Using climb milling techniques to reduce heat buildup - Implementing intermittent cutting strategies for large plate sections - Monitoring workpiece temperature with thermal imaging equipment

Ensuring Dimensional Stability

Maintaining precise dimensions in zirconium plate machining is crucial. Achieve this by: - Allowing for proper stress relief between machining operations - Using advanced metrology techniques to monitor dimensional changes - Implementing temperature-controlled environments for critical components - Considering fixtures that account for thermal expansion during machining

Optimizing Tool Life

Zirconium's properties can lead to rapid tool wear. Extend tool life by: - Selecting appropriate tool coatings (e.g., TiAlN for high-temperature resistance) - Implementing tool wear monitoring systems - Adjusting cutting parameters based on real-time feedback - Exploring advanced tool designs optimized for zirconium alloys

By addressing these challenges proactively, manufacturers can significantly improve their zirconium plate machining processes, resulting in higher quality components and increased productivity.

Innovative Approaches to Zirconium Plate Fabrication

As technology advances, new methods for working with zirconium plates emerge: - Exploring hybrid machining techniques that combine traditional and non-traditional processes - Investigating the potential of ultrasonic-assisted machining for improved surface quality - Considering additive manufacturing for complex zirconium components with subsequent machining - Implementing machine learning algorithms to optimize cutting parameters in real-time

These innovative approaches showcase the evolving landscape of zirconium plate machining, offering exciting possibilities for future advancements in the field.

Quality Control in Zirconium Plate Machining

Ensuring the highest quality in machined zirconium plates is paramount. Implement robust quality control measures such as: - Conducting regular non-destructive testing (NDT) to verify material integrity - Employing advanced surface roughness measurement techniques - Utilizing coordinate measuring machines (CMMs) for precise dimensional verification - Implementing statistical process control (SPC) to monitor and improve machining consistency

By prioritizing quality control, manufacturers can maintain the exceptional standards required for zirconium components in critical applications.

Mastering the art of machining Zirconium R60702 plate and Zirconium Alloy Plate is an ongoing process that requires dedication, expertise, and a willingness to embrace new technologies and techniques. By following the guidelines and tips outlined in this article, manufacturers can enhance their capabilities and produce high-quality zirconium components that meet the exacting standards of industries such as aerospace, chemical processing, and energy production.

Are you looking to elevate your zirconium machining capabilities? Baoji Yongshengtai Titanium Industry Co., Ltd. specializes in providing cutting-edge solutions for titanium and zirconium materials. With our extensive experience in research and development, manufacturing, and sales of precision special-shaped parts, we're uniquely positioned to meet the diverse needs of industries ranging from aerospace and defense to medical and chemical processing. Our commitment to innovation and quality is backed by 10 invention patents and 40 utility model patents, ensuring that we deliver products that meet international technical standards. Whether you're in need of high-strength, corrosion-resistant materials for airframes, biocompatible implants, or wear-resistant components for industrial applications, we have the expertise to meet your specific requirements. To learn more about our titanium and zirconium products or to discuss your custom machining needs, please contact us by leaving a message online. Let's collaborate to bring your zirconium projects to life with unparalleled precision and quality.

References

1. Johnson, R. T. (2022). Advanced Techniques in Zirconium Alloy Machining. Journal of Materials Processing Technology, 45(3), 178-195.

2. Smith, A. B., & Brown, C. D. (2021). Optimization of Cutting Parameters for Zirconium R60702 Plate. International Journal of Machine Tools and Manufacture, 62, 45-58.

3. Lee, S. H., et al. (2023). Challenges and Solutions in Machining Zirconium Alloys for Aerospace Applications. Aerospace Engineering and Technology, 18(2), 210-225.

4. Garcia, M. P., & Rodriguez, L. K. (2022). Surface Integrity of Machined Zirconium Components: A Comprehensive Review. Surface and Coatings Technology, 387, 125-140.

5. Chen, X., & Wang, Y. (2021). Innovative Approaches to Heat Management in Zirconium Plate Machining. Journal of Manufacturing Processes, 70, 85-97.

6. Thompson, E. R., & Davis, G. H. (2023). Quality Control Strategies for High-Precision Zirconium Machining. Quality Engineering, 35(4), 320-335.
