Closed-die vs. open-die titanium forging: What's the difference?

When it comes to forging titanium alloys, manufacturers primarily employ two distinct methods: closed-die and open-die forging. Each technique offers unique advantages and is suited for different applications.

Closed-die titanium forging: Precision and complexity

Closed-die forging, also known as impression-die forging, involves shaping heated titanium between two dies that contain a preformed impression of the desired part. This method is ideal for producing complex shapes with tight tolerances and excellent surface finishes. The process typically involves:

• Heating the titanium billet to its optimal forging temperature
• Placing the heated material in the lower die
• Applying pressure with the upper die to force the titanium into the cavity
• Removing excess material, known as flash, through trimming

Closed-die forging is particularly advantageous for high-volume production runs and components that require intricate geometries. It's commonly used in aerospace applications for fabricating turbine blades, structural components, and landing gear parts.

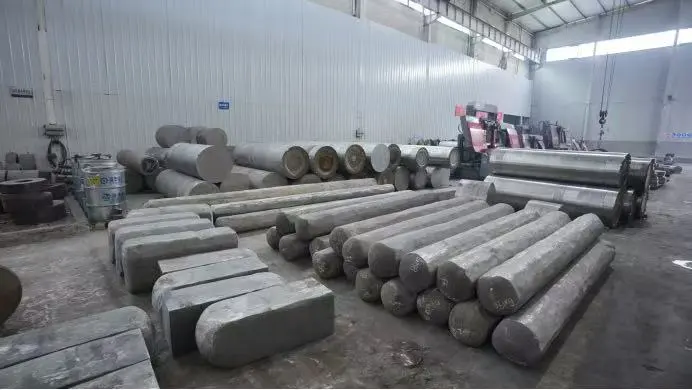

Open-die titanium forging: Versatility and large-scale production

Open-die forging, in contrast, involves shaping titanium between flat or simply contoured dies. This method offers greater flexibility and is well-suited for producing larger parts or those with simpler geometries. The process typically includes:

• Heating the titanium workpiece to its forging temperature
• Positioning the material between the dies
• Applying intermittent pressure and manipulating the workpiece to achieve the desired shape
• Performing multiple forging operations to refine the final form

Open-die forging is often employed for creating large structural components, such as ship propeller shafts, industrial valve bodies, and custom titanium fittings for chemical processing equipment.

Why is titanium harder to forge than steel or aluminum?

While titanium offers exceptional strength-to-weight ratio and corrosion resistance, it presents unique challenges in the forging process. Understanding these difficulties is crucial for manufacturers aiming to optimize their titanium forging operations.

High strength and low ductility

Titanium's inherent strength, which makes it desirable for many applications, also makes it more resistant to deformation during forging. Unlike steel or aluminum, titanium requires significantly higher forging pressures and temperatures to achieve the desired shape. This increased force can lead to:

• Accelerated wear on forging equipment
• Higher energy consumption during the forging process
• Increased risk of tool failure or damage

Narrow temperature window

Titanium has a relatively narrow temperature range for optimal forging. If the temperature is too low, the material becomes difficult to deform. Conversely, if it's too high, the titanium can react with oxygen and nitrogen in the air, forming a brittle surface layer known as alpha case. This sensitivity to temperature requires:

• Precise temperature control throughout the forging process
• Specialized heating equipment and temperature monitoring systems
• Careful timing to ensure the titanium remains within the optimal forging temperature range

Microstructure considerations

The microstructure of titanium alloys plays a crucial role in determining their mechanical properties. During forging, controlling the grain structure and phase transformations is essential for achieving the desired characteristics. This requires:

• Careful selection of forging temperatures and cooling rates
• Understanding of the specific titanium alloy's phase diagram
• Post-forging heat treatments to optimize the final microstructure

Overcoming springback and cracking in titanium forgings

Two of the most significant challenges in titanium forging are springback and cracking. These issues can lead to dimensional inaccuracies and compromised structural integrity if not properly addressed.

Managing springback in titanium forgings

Springback occurs when the forged titanium part partially returns to its original shape after the forging pressure is released. This phenomenon is particularly pronounced in titanium due to its high strength and elasticity. To mitigate springback, manufacturers employ several strategies:

• Overforging: Designing dies that account for the expected springback by slightly oversizing the part
• Multi-stage forging: Gradually shaping the titanium through multiple forging steps to reduce residual stresses
• Optimized cooling: Controlling the cooling rate to minimize internal stresses that contribute to springback
• Computer simulations: Utilizing advanced modeling software to predict and compensate for springback

Preventing cracking in titanium forgings

Cracking can occur during the forging process or subsequent cooling stages, compromising the integrity of the forged part. Several factors contribute to cracking in titanium forgings:

• Rapid cooling rates leading to thermal stresses
• Excessive deformation during forging
• Presence of impurities or defects in the raw material
• Inadequate lubrication during the forging process

To prevent cracking, manufacturers implement various techniques:

• Controlled cooling: Implementing slower, more uniform cooling processes to reduce thermal stresses
• Optimized preform design: Creating intermediate shapes that distribute stresses more evenly during forging
• Improved lubrication: Using advanced lubricants to reduce friction and prevent surface cracking
• Material selection: Choosing titanium alloys with improved forgeability for challenging geometries
• Non-destructive testing: Implementing rigorous inspection procedures to detect and address potential cracks early in the production process

Advanced techniques for titanium forging

As technology advances, new methods are emerging to enhance the titanium forging process and overcome traditional challenges:

• Isothermal forging: Maintaining a constant temperature throughout the forging process to improve formability and reduce the risk of cracking
• Precision forging: Utilizing high-precision dies and advanced process control to minimize post-forging machining requirements
• Hot die forging: Heating the forging dies to reduce thermal gradients and improve material flow
• Ultrasonic-assisted forging: Incorporating ultrasonic vibrations to enhance material plasticity and reduce forging forces

These innovative techniques are pushing the boundaries of what's possible in titanium forging, enabling the production of increasingly complex and high-performance components.

Quality control in titanium forging

Ensuring the quality and reliability of forged titanium parts is paramount, especially for critical applications in aerospace and medical industries. Manufacturers employ a range of quality control measures:

• Metallographic analysis: Examining the microstructure of forged parts to verify proper grain size and orientation
• Mechanical testing: Conducting tensile, fatigue, and impact tests to ensure the forged components meet specified performance criteria
• Dimensional inspection: Utilizing coordinate measuring machines (CMMs) and 3D scanning technology to verify dimensional accuracy
• Non-destructive testing: Employing techniques such as ultrasonic testing, X-ray inspection, and dye penetrant testing to detect internal defects or surface imperfections

By implementing rigorous quality control procedures, manufacturers can ensure that forged titanium components meet the exacting standards required for their intended applications.

Future trends in titanium forging

The field of titanium forging continues to evolve, driven by demands for improved performance, efficiency, and cost-effectiveness. Some emerging trends include:

• Additive manufacturing integration: Combining 3D printing techniques with traditional forging to create near-net-shape preforms, reducing material waste and machining time
• Advanced alloy development: Creating new titanium alloys with enhanced forgeability and performance characteristics
• AI-driven process optimization: Utilizing artificial intelligence and machine learning algorithms to optimize forging parameters and predict material behavior
• Sustainable forging practices: Implementing energy-efficient heating methods and recycling strategies to reduce the environmental impact of titanium forging operations

As these technologies mature, they promise to revolutionize the titanium forging industry, enabling the production of even more advanced and efficient components for a wide range of applications.

Mastering the art and science of titanium forging requires a deep understanding of material properties, advanced processing techniques, and rigorous quality control measures. By overcoming challenges such as springback and cracking, manufacturers can harness the full potential of titanium alloys to create high-performance components that push the boundaries of what's possible in aerospace, medical, and industrial applications.
