Zirconium Foil Manufacturing Techniques

The production of high-quality thin zirconium foils requires advanced manufacturing techniques to ensure optimal performance and consistency. These methods have evolved to meet the growing demand for ultra-thin, precise, and uniform foils across various industries.

Rolling and Annealing Processes

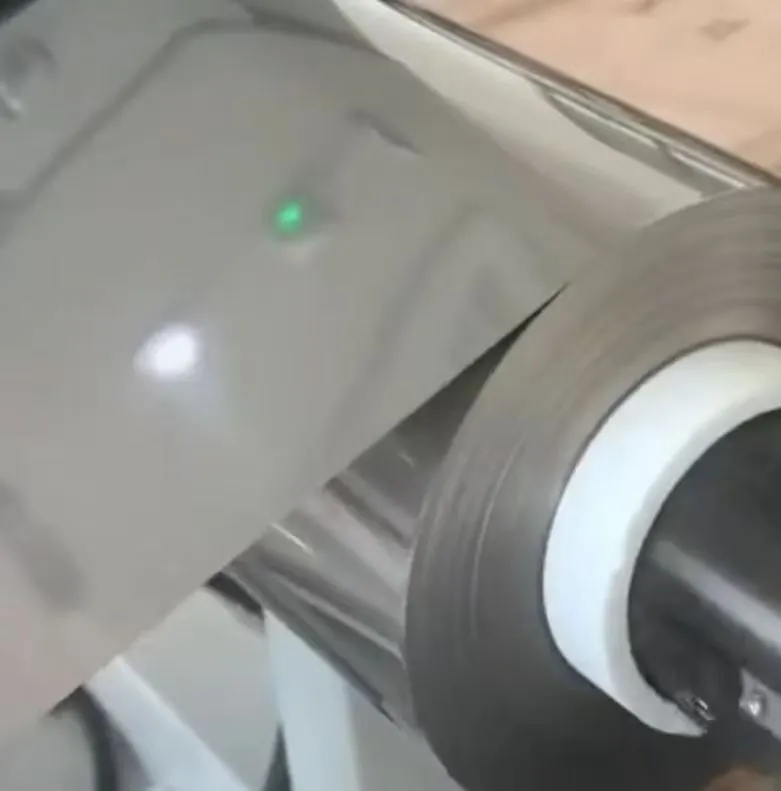

One of the primary techniques used in zirconium alloy foil production is the rolling and annealing process. This method involves repeatedly passing zirconium ingots through precision rollers to gradually reduce their thickness. The material undergoes controlled heating and cooling cycles between rolling passes to maintain its desired microstructure and prevent excessive work hardening.

The rolling process allows manufacturers to achieve incredibly thin foils, often less than 0.1 mm in thickness. The annealing steps help relieve internal stresses and improve the foil's formability, making it more suitable for subsequent shaping and forming operations.

Precision Slitting and Cutting

After the rolling process, zirconium foils undergo precision slitting and cutting to achieve the desired dimensions and shapes. Advanced cutting technologies, such as laser cutting or high-precision shearing, ensure clean edges and tight tolerances. This step is crucial for producing foils that meet specific customer requirements and industry standards. When considering zirconium alloy foil supplier, you need to pay attention to their cutting technology and ability to maintain consistent dimensions and tolerances.

Surface Treatment and Finishing

To enhance the properties and appearance of zirconium foils, various surface treatments and finishing techniques may be applied. These can include:

• Chemical etching to create specific surface textures or remove impurities
• Electropolishing to improve surface smoothness and corrosion resistance
• Passivation treatments to form a protective oxide layer
• Application of specialized coatings for enhanced functionality

These treatments can significantly impact the foil's performance in specific applications, such as improving its biocompatibility for medical uses or enhancing its catalytic properties for chemical processes.

Design Possibilities with Flexible Zirconium Foil

The excellent formability of thin zirconium foils opens up a wide range of design possibilities across various industries. Engineers and designers can leverage the material's unique properties to create innovative solutions and improve existing products.

Complex Geometries and Intricate Shapes

Thin zirconium foils can be easily shaped into complex geometries and intricate forms, making them ideal for applications that require custom-designed components. The material's malleability allows for:

• Deep drawing to create cylindrical or cup-shaped parts
• Stamping and embossing to produce textured surfaces or raised patterns
• Folding and bending to create three-dimensional structures
• Fine detail work for miniature components in electronics or medical devices

These capabilities enable designers to push the boundaries of what's possible with metal components, creating lightweight yet strong structures that were previously challenging to manufacture.

Laminated and Composite Structures

Thin zirconium foils can be incorporated into laminated and composite structures, combining the material's unique properties with those of other materials. This approach allows for the creation of:

• Multi-layer heat shields for aerospace applications
• Corrosion-resistant linings for chemical processing equipment
• Flexible electronic circuits with enhanced durability
• Biocompatible coatings for medical implants

By strategically layering zirconium foils with other materials, engineers can develop components that exhibit a combination of properties not achievable with single materials alone.

Micro-Scale Applications

The ability to produce ultra-thin zirconium foils enables their use in micro-scale applications, where space and weight constraints are critical. Some examples include:

• Microelectromechanical systems (MEMS) components
• Thin-film batteries and energy storage devices
• High-precision sensors and actuators
• Micro-fluidic devices for chemical and biological analysis

In these applications, the unique combination of zirconium's properties - including its corrosion resistance, biocompatibility, and mechanical strength - make it an attractive material choice for miniaturized devices.

Best Practices for Working with Thin Zirconium

To fully leverage the excellent formability of thin zirconium foils, it's essential to follow best practices during handling, forming, and processing. These guidelines help ensure optimal results and minimize the risk of material damage or defects.

Proper Handling and Storage

Thin zirconium foils require careful handling to prevent damage and contamination. Some key practices include:

• Using clean, lint-free gloves when handling foils
• Storing foils in a clean, dry environment to prevent oxidation
• Avoiding sharp bends or creases during storage and transport
• Implementing proper inventory rotation to ensure material freshness

By following these guidelines, manufacturers can maintain the quality and integrity of their zirconium foils throughout the production process.

Optimizing Forming Parameters

When shaping thin zirconium foils, it's crucial to optimize forming parameters to achieve the desired results without compromising the material's properties. Considerations include:

• Controlling forming speed and pressure to prevent tearing or excessive thinning
• Using appropriate lubricants to reduce friction and improve formability
• Selecting the right forming temperature to enhance malleability
• Designing progressive forming steps for complex geometries

Careful attention to these factors can help maximize the formability of zirconium foils while maintaining their structural integrity and performance characteristics.

Surface Protection During Processing

Protecting the surface of thin zirconium foils during processing is essential to maintain their quality and appearance. Some effective methods include:

• Applying temporary protective films or coatings
• Using non-marring tools and equipment
• Implementing clean room practices for sensitive applications
• Conducting regular quality checks to identify and address any surface defects

These precautions help ensure that the finished zirconium components meet the required specifications and maintain their desired properties.

Post-Forming Heat Treatment

After forming, thin zirconium foils may benefit from post-forming heat treatment to relieve internal stresses and optimize their mechanical properties. This process can involve:

• Stress relief annealing to reduce residual stresses from forming operations
• Recrystallization annealing to restore ductility and formability
• Controlled cooling to achieve specific microstructures
• Vacuum or inert atmosphere heat treatment to prevent surface oxidation

Proper heat treatment can significantly enhance the performance and longevity of formed zirconium components, ensuring they meet the demanding requirements of various applications.

The excellent formability of thin zirconium foils presents a world of possibilities for innovative design and manufacturing. By leveraging advanced production techniques, exploring creative design approaches, and adhering to best practices in handling and processing, industries can harness the full potential of this versatile material. As technology continues to advance, we can expect to see even more exciting applications for thin zirconium foils across a wide range of sectors, from aerospace and electronics to medical devices and energy systems.
