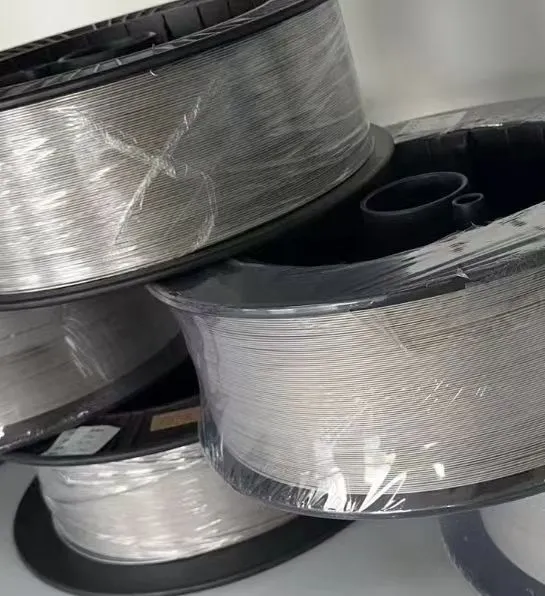

Zirconium alloy wire has become an indispensable material in various high-performance applications, thanks to its exceptional strength, corrosion resistance, and unique properties. Understanding the specifications that define high-strength zirconium wire is crucial for engineers, manufacturers, and researchers working in industries such as aerospace, nuclear energy, and chemical processing. In this comprehensive guide, we'll delve into the key aspects that determine the strength and performance of zirconium alloy wire, including ASTM standards, alloy composition, and testing methods.

ASTM standards for zirconium wire: What grades are considered high-strength?

The American Society for Testing and Materials (ASTM) has established several standards for zirconium alloy materials, including wire products. These standards provide crucial guidelines for manufacturers and end-users to ensure consistency and quality in zirconium wire production.

ASTM B550: Standard Specification for Zirconium and Zirconium Alloy Wire and Rod

ASTM B550 is the primary standard governing zirconium wire and rod products. It outlines the requirements for chemical composition, mechanical properties, and dimensional tolerances for various zirconium grades. Among these, certain grades are recognized for their superior strength characteristics:

• Grade R60702 (Zr702): A commercially pure zirconium grade with good strength and excellent corrosion resistance.
• Grade R60705 (Zr705): An alloy containing 2-3% niobium, known for its enhanced strength compared to pure zirconium.
• Grade R60704 (Zr704): A zirconium-tin alloy with improved strength and oxidation resistance.

High-Strength Zirconium Grades

While all zirconium alloys offer impressive strength-to-weight ratios, grades like Zr705 are particularly noted for their high-strength properties. The addition of alloying elements such as niobium significantly enhances the mechanical properties of the wire, making it suitable for applications requiring superior tensile strength and yield strength.

How alloy composition (Zr702 vs. Zr705) affects wire strength and ductility?

The composition of zirconium alloy wire plays a pivotal role in determining its strength and ductility. Let's explore the differences between two popular grades: Zr702 and Zr705.

Zr702: Commercially Pure Zirconium

Zr702 is composed of at least 99.2% zirconium, with minimal alloying elements. Its properties include:

• Moderate strength
• Excellent corrosion resistance
• High ductility
• Superior formability

While Zr702 offers good overall performance, its strength is lower compared to alloyed grades.

Zr705: Niobium-Enhanced Zirconium Alloy

Zr705 contains 2-3% niobium, which significantly alters its properties:

• Higher tensile and yield strength
• Improved ductility
• Enhanced formability
• Maintained corrosion resistance

The addition of niobium creates a solid solution strengthening effect, resulting in a wire that's both stronger and more ductile than Zr702.

Comparative Analysis

When comparing Zr702 and Zr705 wires of similar dimensions:

• Tensile Strength: Zr705 typically exhibits 20-30% higher tensile strength.
• Yield Strength: Zr705 shows a 30-40% increase in yield strength.
• Elongation: Both grades offer good elongation, but Zr705 may have a slight edge in certain conditions.

These differences make Zr705 the preferred choice for applications requiring higher strength, while Zr702 remains ideal for scenarios prioritizing corrosion resistance and formability.

Testing methods for zirconium wire: Yield strength, elongation, and hardness benchmarks

Ensuring the quality and performance of zirconium wire requires rigorous testing. Several standardized methods are employed to evaluate key properties such as yield strength, elongation, and hardness.

Tensile Testing

Tensile testing is the primary method for determining the strength and ductility of zirconium wire. The process involves:

• Sample Preparation: Cutting wire to specified lengths.
• Test Setup: Securing the wire in a tensile testing machine.
• Load Application: Gradually increasing the load until failure.
• Data Collection: Recording stress-strain curves and key metrics.

Key parameters measured include:

• Yield Strength: The stress at which the wire begins to deform plastically.
• Ultimate Tensile Strength: The maximum stress the wire can withstand before failure.
• Elongation: The percentage increase in length before fracture, indicating ductility.

Hardness Testing

Hardness testing provides insights into the wire's resistance to deformation and wear. Common methods include:

• Vickers Hardness Test: Suitable for thin wires, using a diamond indenter.
• Rockwell Hardness Test: Applicable for larger diameter wires.

Benchmarks for High-Strength Zirconium Wire

While exact values can vary based on specific alloy compositions and processing methods, general benchmarks for high-strength zirconium wire include:

• Yield Strength: 380-550 MPa for Zr705
• Ultimate Tensile Strength: 550-750 MPa for Zr705
• Elongation: 16-25% for both Zr702 and Zr705
• Vickers Hardness: 200-250 HV for Zr705

These values serve as guidelines, and specific applications may require customized specifications.

Advanced Testing Techniques

In addition to standard tests, advanced techniques may be employed for specialized applications:

• Fatigue Testing: Evaluating the wire's performance under cyclic loading.
• Corrosion Testing: Assessing resistance to specific corrosive environments.
• High-Temperature Testing: Measuring properties at elevated temperatures for nuclear or aerospace applications.

These comprehensive testing methods ensure that zirconium alloy wire meets the exacting standards required for critical applications across various industries.

Conclusion

Understanding the specifications that define high-strength zirconium alloy wire is essential for ensuring optimal performance in demanding applications. From ASTM standards to alloy composition and rigorous testing methods, each aspect plays a crucial role in determining the wire's strength, ductility, and overall quality. By carefully considering these factors, engineers and manufacturers can select the most appropriate zirconium wire grade for their specific needs, whether in aerospace, nuclear energy, or chemical processing industries.

Are you in need of high-performance zirconium alloy wire for your next project? Look no further than Baoji Yongshengtai Titanium Industry Co., Ltd. As a national high-tech enterprise specializing in titanium and zirconium materials, we offer a wide range of products including zirconium wire that meets the most stringent international standards. Our team of experts can provide customized solutions for your unique requirements, whether you're in the aerospace, medical, chemical, energy, automotive, or industrial manufacturing sector. With our commitment to quality and innovation, backed by numerous patents and certifications, we're your trusted partner for all things zirconium. Contact us today via online message to discuss how our high-strength zirconium alloy wire can elevate your next project to new heights of performance and reliability.

References

1. ASTM International. (2021). "ASTM B550 - Standard Specification for Zirconium and Zirconium Alloy Wire and Rod."
2. Lustman, B., & Kerze, F. (2018). "The Metallurgy of Zirconium." Elsevier.
3. Banerjee, S., & Mukhopadhyay, P. (2019). "Phase Transformations: Examples from Titanium and Zirconium Alloys." Elsevier.
4. Leyens, C., & Peters, M. (Eds.). (2020). "Titanium and Titanium Alloys: Fundamentals and Applications." John Wiley & Sons.
5. ASM International. (2022). "ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials."
6. Callister, W. D., & Rethwisch, D. G. (2018). "Materials Science and Engineering: An Introduction." John Wiley & Sons.
